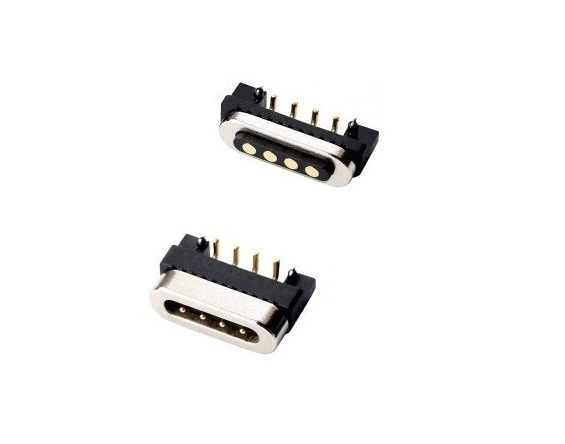

4 Pin Pogo Pin Magnetic Connector

1

接触电阻

30 Mohm Max @wordking stroke
  (所有工作行程范围内动态电阻)

2

绝缘电阻
  (单Pin不适用)

500 Mohm Min

3

耐电压测试
  (单Pin不适用)

No flash-over, air discharge, breakdown, or leakage

4

额定电流测试

30 degree Max.
  temperature rise at a specified current

机械性能 (Mechanical   performance)

1

弹力测试

refer to product drawing

2

保持力测试
  (单Pin不适用)

0.5Kgf(4.5N)Min.

3

耐久性

10,000 cycles Min.
  (工作行程范围内动态电阻)

4

振动测试

No physical damage, no electrical discontinuity more than 1i second.

5

机械冲击测试

No physical damage, no electrical discontinuity more than 1i second.

环境测试性能   (Environmental)

1

可焊性

solder coverage area Min.95 percent

2

盐雾腐蚀试验

No physical damage. Resistance after test 100 MohmMax.

3

耐焊锡热

No cracks,chips,melting,or blister

4

高湿测试

No physical damage, Resistance after test 100 Mohm Max.

5

冷热冲击测试

No physical damage, Resistance after test 100 Mohm Max.

6

高温测试

No physical damage, Resistance after test 100 Mohm Max.
